For the most hardcore Miata racer or enthusiast Extreme Miata Racing Parts exists to help you go way faster and have more fun!

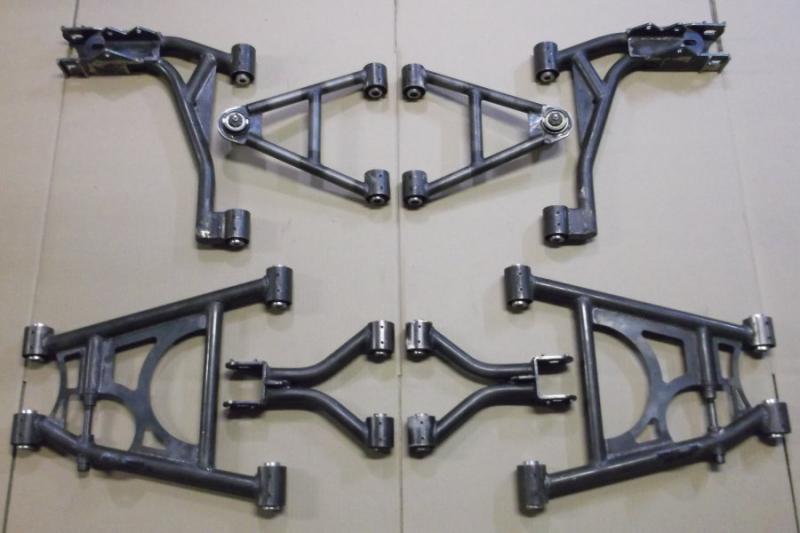

Miata Custom Tubular Chromoly Control Arms
Prototype Set Pictured Above. Many revisions and imporvements have been made! Taking Orders Now! Call or Text 702-596-8167 anytime or Email Sales@MiataPartsSource.com
All Parts Custom Made to your Needs with detailed phone consultation. Typically 4-6 week ETA.
Features:
Utilizes any OEM factory or aftermarket Miata Bushings
Sealed Spherical Bushing Option Available for the Ultimate In Performance!!! Control Arms have snap rings and set screws in order to secure the spherical bushings. Set Screws also double as extra security for other types of bushings and keeps the bushings from walking and messing up your alignment.
Rear Upper Control Arms and Front Lower Control Arms utilize an extra OEM factory eccentric bolt for plus or minus an extra 2 degrees of camber adjustability
Tig Welded 4130 Chromoly Contruction!!!
Much, Much Stronger than the OEM Factory Control Arms
Up To Over 5 Lbs of Weight Savings Per Corner!!! (Depends On Finish and Bushing Choice)
V8R Adjustable Ball Joints or Moog Ball Joints
Pricing Starts at only $1750 For a Complete set of 8 Control Arms (No Finish and Urethane Bushing Kit Including Sway Bar Bushings and Differential Bushings)
Pair of Front Lower Arms Starting at only $650 (No Finish and No Bushings)
Pair of Front Upper Arms Starting at only $375 (No Finish and No Bushings)
Pair of Rear Lower Arms Starting at only $600 (No Finish and No Bushings)
Pair of Rear Upper Arms Starting at only $300 (No Finish and No Bushings)
Options Include:
For Those Buying a Complete Set of 8 Control Arms There is a Bushing Delete Option which drops the price by $125
Delrin or Spherical Bushings: Call or Email For Application and Pricing
Power Coating (Any Single Stage Color You Want) : $199

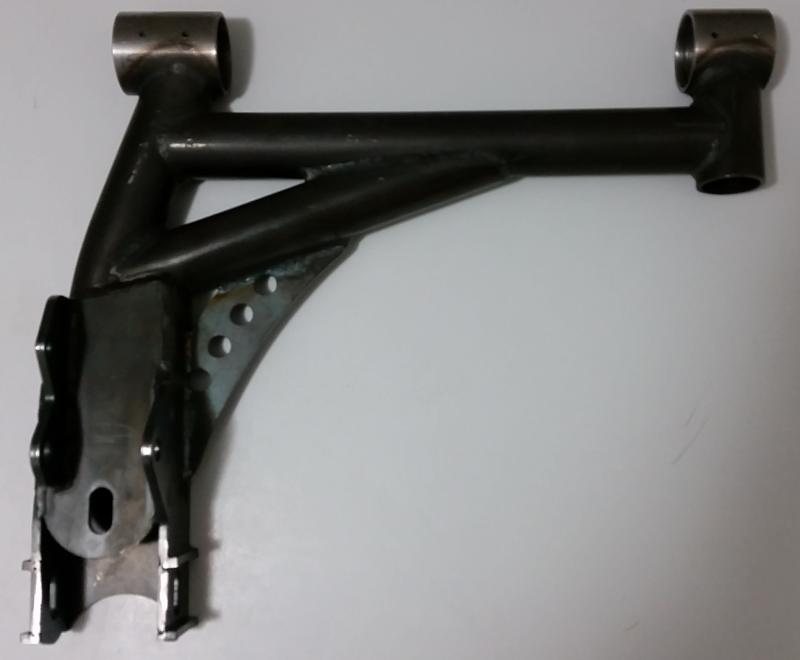

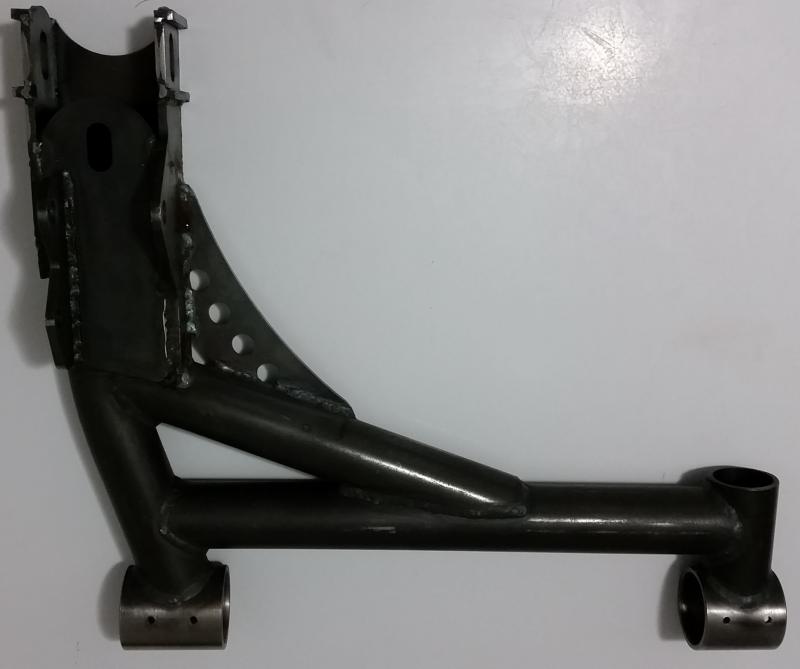

Latest Revision of Front Lower Control Arms. These are Absolutely Bionic!!!
Still made from 4130 Chromoly Utilizing 1.5" .120 Wall Tubing and 3/16" Steel Plate !!!
These Arms Also Offer Significantly More Steering Angle Than Factory Arms.
Wanna Bolt on over 2 Degrees of Extra Negative Camber Affordably, Quickly and Easily?
We tested the very first prototype set of these Extended Front Lower Ball Joints Back in October 2015 on a Stock NB Miata at stock ride height and these were the results at each extremity:
Maximum Camber on NB Miata At Stock Ride Height:
Minimum Camber On NB Miata at Stock Ride Height:
Legal for NASA Spec Miata!
Sold as a pair. One pair is needed per car.

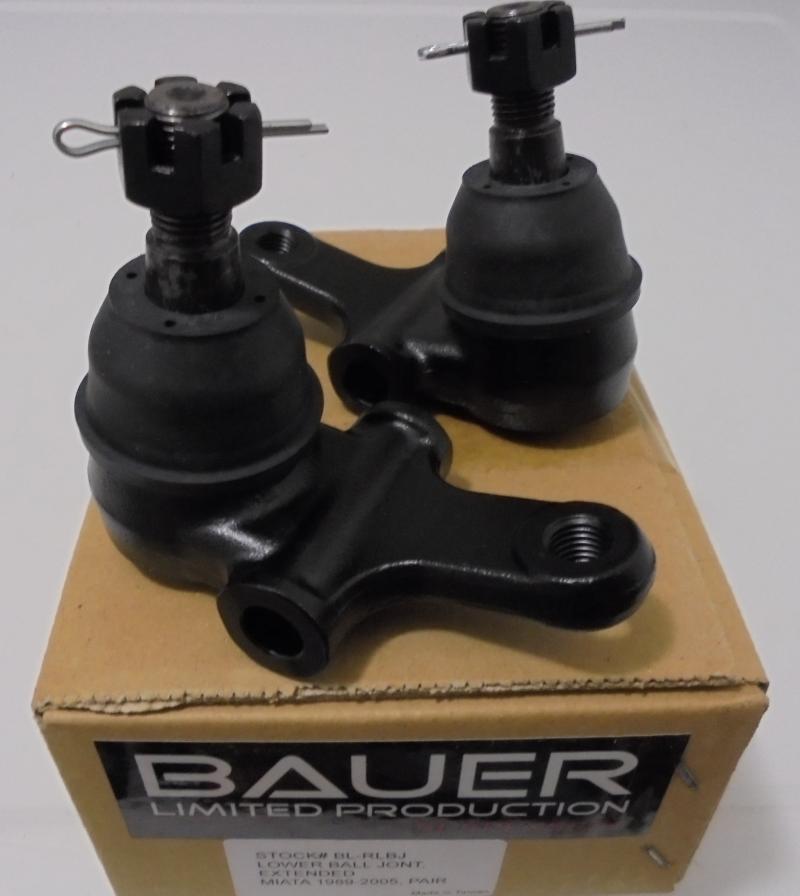

Are you looking for more front camber, but are frustrated with slipping bushings or hampered by minimal spring clearance? Here's your solution.
This extended lower ball joint bolts in place of the factory unit, but adds over 2° of negative camber by pushing the bottom of the tire outboard. You'll gain clearance instead of losing it, and there's no chance they'll slip. Perfect for autocrossers or anyone looking to get as much negative camber as possible. If you want, you can even swap back and forth between these and stock units to change from street to track alignment without touching your alignment cams. At stock ride height, you'll be able to run approximately between -.5° and -3.5° of camber.
With a forged body, they're stronger and better than the OEM parts.
Legal for SCCA STR. Legal for NASA Spec Miata. +2 points for NASA TT/PT.
Many Sets In Stock and Ready To Ship Taking Orders Now! $139.95
